Prior to beginning damper service, remove the damper side leg assembly per the 50 hour service instructions.
Thoroughly clean the damper leg assembly in preparation for service.
Invert Enduro Damper Complete 100 Hour Service Instructions
Oct 2026 orig.
Table of Contents
Recommendations and Warnings
Cane Creek recommends only trained suspension technicians perform service on all suspension, using all required tools and following all proper procedures. Anyone without access to the proper equipment or with any concerns on the procedures should defer to an authorized Cane Creek service center for service. Improper service can result in loss of performance or suspension failure. All Cane Creek forks have pressurized oil. Follow the service procedures exactly as written to avoid possible injury or harm to the suspension. Always wear eye protection while performing suspension service.
Please dispose of all waste products and materials through proper channels to avoid contamination of the environment.
Any damage or issues resulting from improper service will not be covered by warranty. If you have a fork still in its original warranty period and do not wish to void your warranty, please contact an authorized Cane Creek service center.
These service instructions cover the basic service procedures using standard service kits. If your suspension requires parts beyond standard replacement parts – CSU, compression rods, etc. – please consult your authorized Cane Creek service center or contact us at our Cane Creek Support Center.
Service Notes
These instructions cover just the damper leg of a complete 100 hour service. The Invert Enduro damper is serviced using the HELM MKII Damper Side (Air & Coil) 100 Hour Service Instructions. Combine these instructions with the Invert Enduro Air Spring Complete 100 Hour Service and 50 hour lower service to get a complete 100 hour fork service.
Additionally, you can send the damper for a service with an authorized Cane Creek service center.
Service Kit
BAG0713 – HELM MKII – DAMPER SERVICE KIT – BAGGED
Required Cane Creek Tools
See the HELM MKII Damper Side 100 Hour Service for damper service tools.
Additional Tools & Supplies
Hex key – 3mm
10mm socket
Pin spanner
Snap ring pliers
30mm chamferless socket
Breaker bar
Torque wrench
Soft jaw vise
Microfiber cloth
Solvent
Loctite 243 (Blue)
Torque & Loctite Specs
Torque & Loctite Chart
| Part | Torque Spec | Loctite Spec |
|---|---|---|
| Damper Assembly | 36 Nm | 243 (Blue) |
| LSC Adjuster Retainer | 2 Nm | – |
Related Technical Service Bulletins
Review all related TSBs before performing any service.
No specific Invert Enduro damper TSBs at this time.
Damper Leg Removal
Damper Removal
Step 1 – Axle Bolt Removal

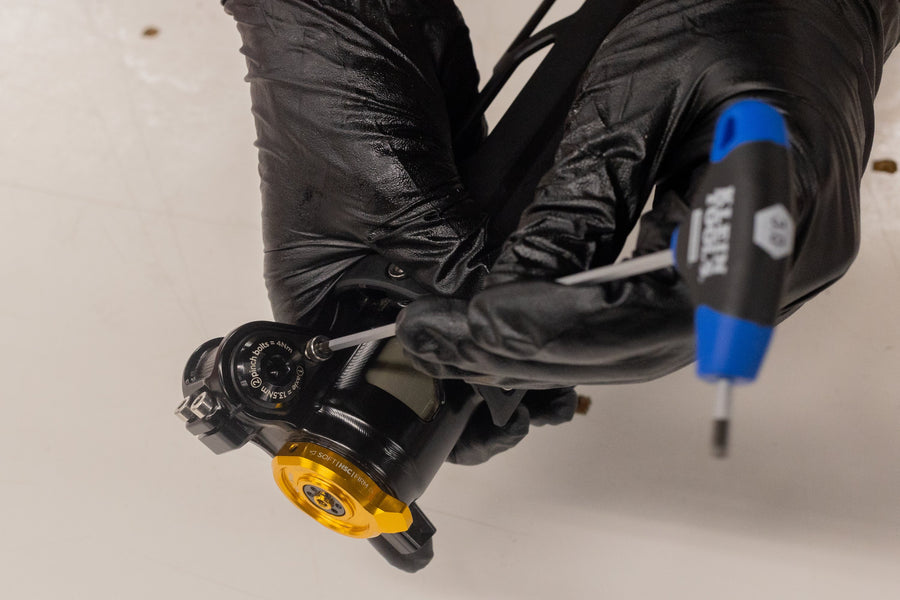

Use a 3mm hex key to remove the axle retainer bolt. Remove the axle bolt assembly.
Step 2 – Adjuster Removal

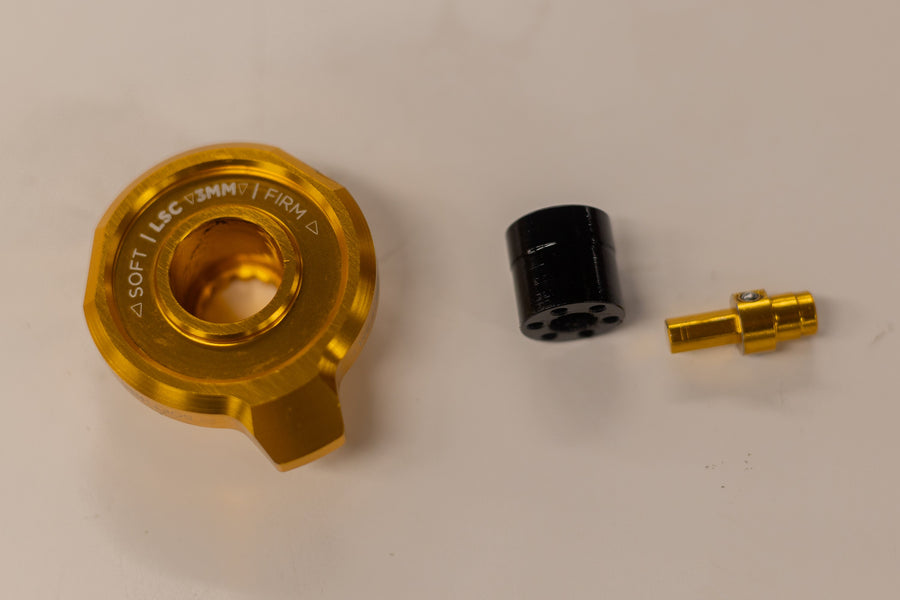

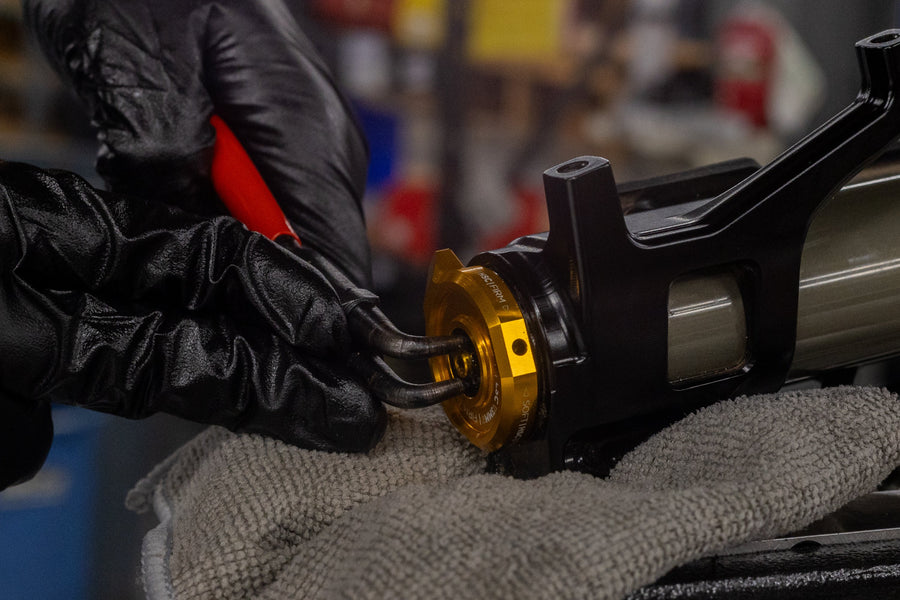

Unthread the adjuster cap retainer with snap ring pliers. Remove the HSC and LSC adjusters.
Step 3 – Damper Removal
Using a soft jaw vise and a microfiber cloth, lightly clamp the dropout around the axle flats.

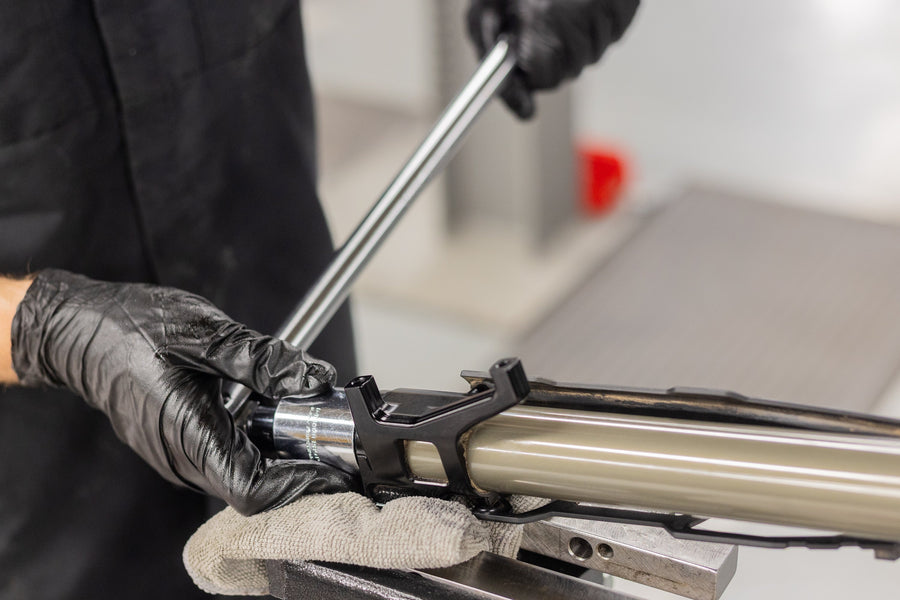

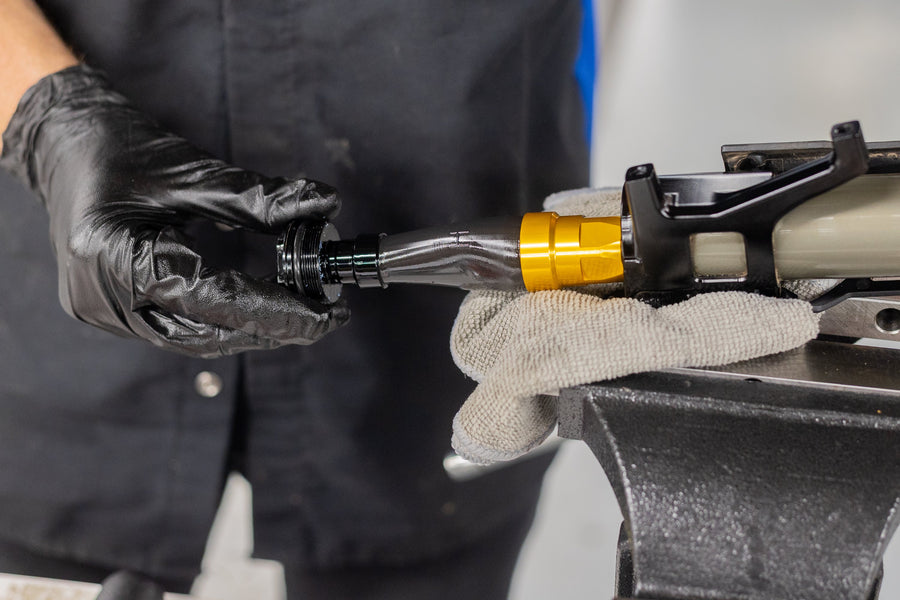

Using a 30mm chamferless socket, remove the damper assembly. A breaker bar may be necessary.
Damper & Leg Inspection
Clean excess oil from the damper assembly and inspect. Clean and inspect the damper leg. Clean all small parts in solvent.
Complete the damper service per the HELM MKII Damper Side (Air & Coil) 100 Hour Service Instructions, then return here to reinstall the damper.
Damper Install
Step 1 – Damper Install
Using a soft jaw vise and a microfiber cloth, lightly clamp the dropout around the axle flats.
Apply blue Loctite (243) to the damper threads, thread the damper into the damper side dropout and torque the assembly to 36 Nm with a 30mm chamferless socket.
Adjuster Reinstall
Step 1 – Adjuster Reinstall
- Using a 10mm socket or the HSC knob, turn the HSC to open (counter clockwise).

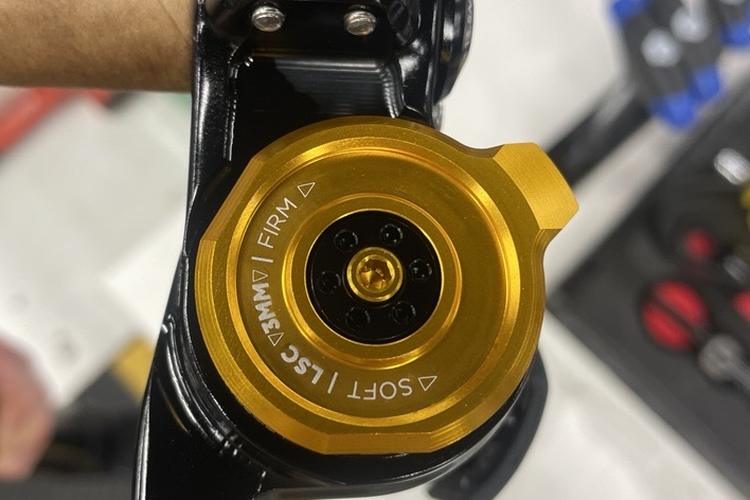

- Place the HSC adjuster knob on in the position shown.
- Install the LSC adjuster, then the LSC retainer. Thread on with a pin spanner or snap ring pliers.
- Torque to 2 Nm with a pin spanner, or tighten until snug with snap ring pliers.
- Work the LSC and HSC adjusters in and out to make sure they rotate smoothly.
Axle Bolt Reinstall
Step 1 – Axle Bolt Reinstall
- Reinstall the axle bolt assembly. Use a 3mm hex key to install the axle retainer bolt.
- Tighten until snug once the wheel and axle have been installed.
Damper Leg Install
Upon completion of the damper service and any air spring service, reinstall the damper leg assembly per the 50 hour service instructions.
