Invert Enduro
Invert Enduro
Limited quantities available - suspension items are built to order and ship in 5-10 business days.

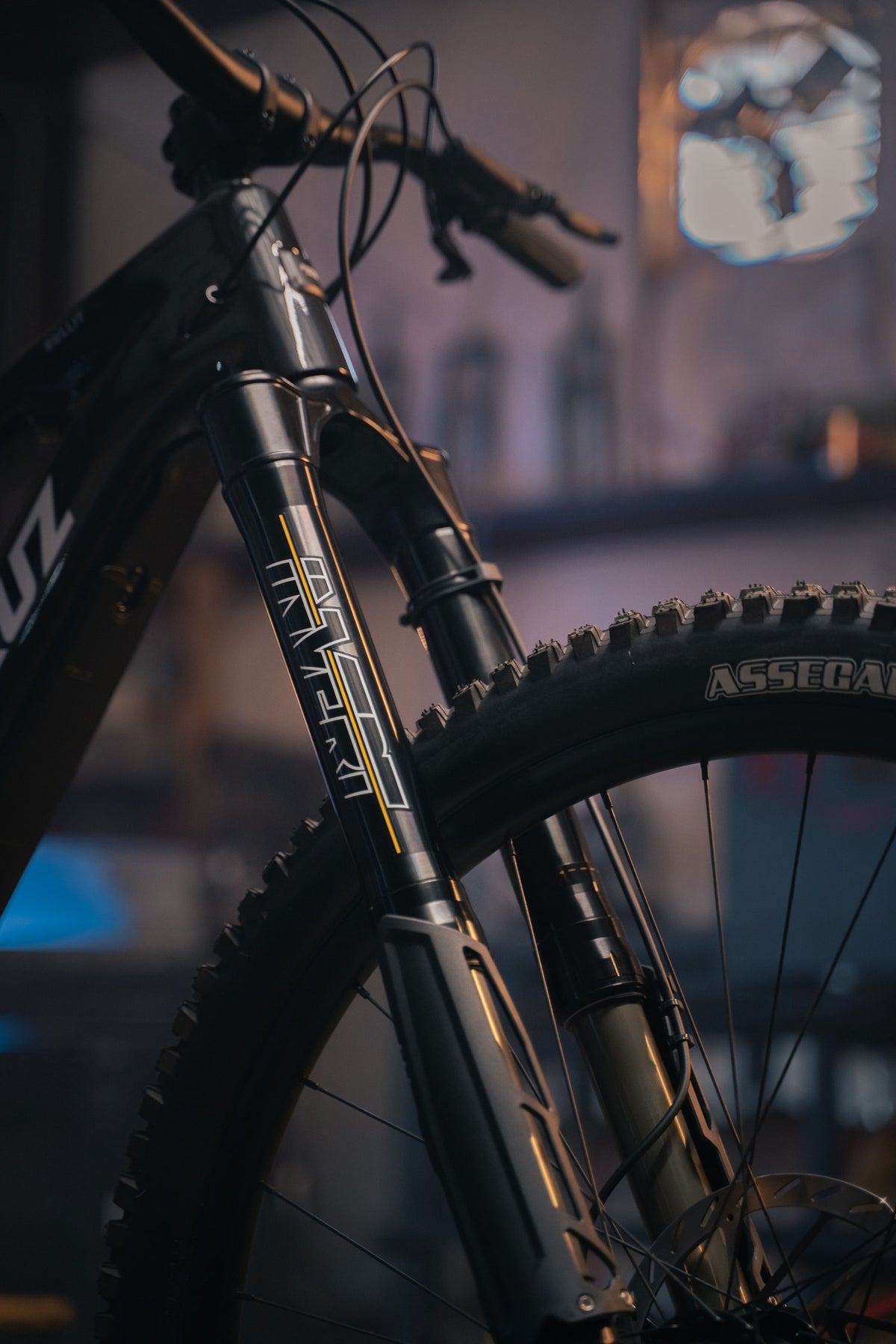

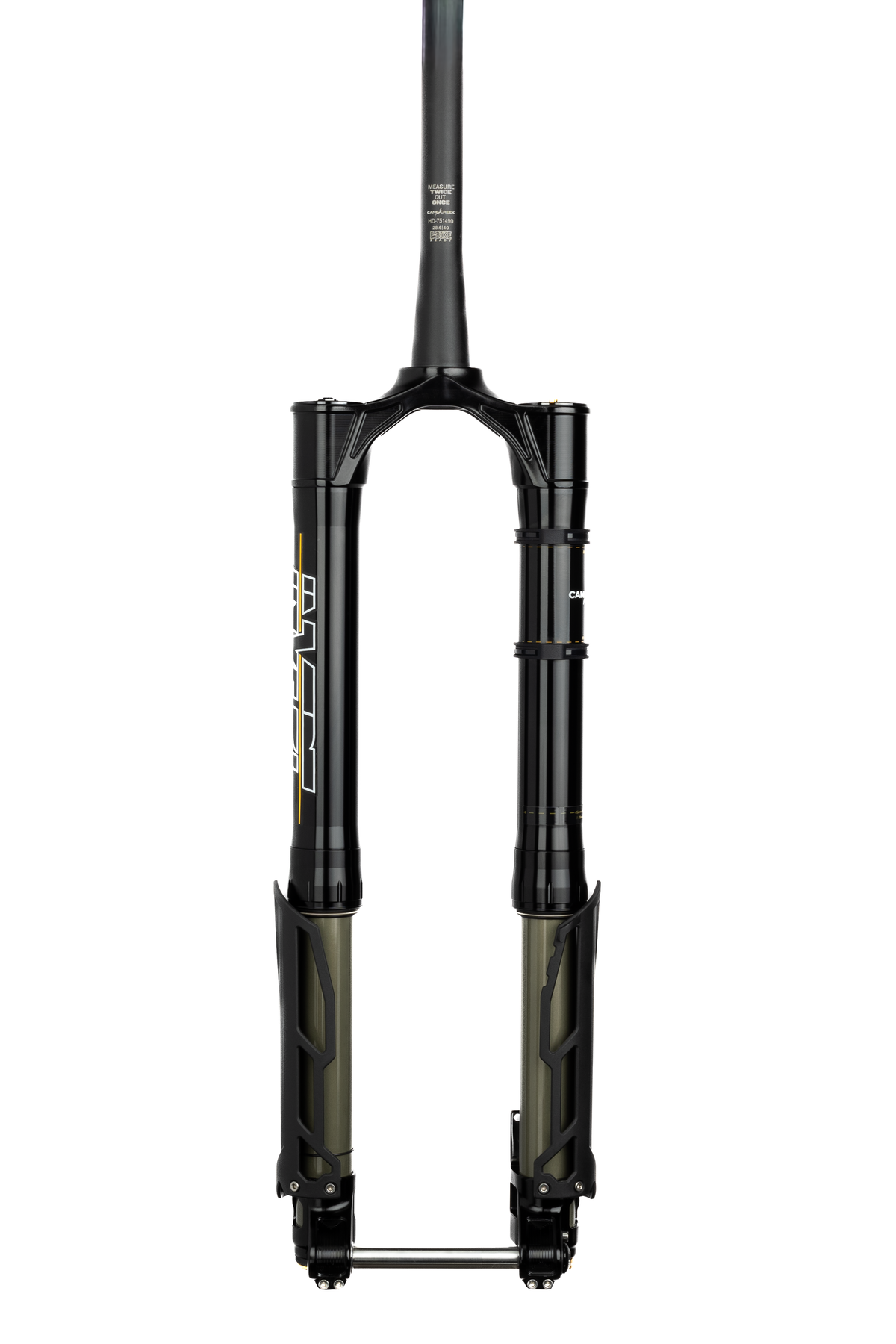

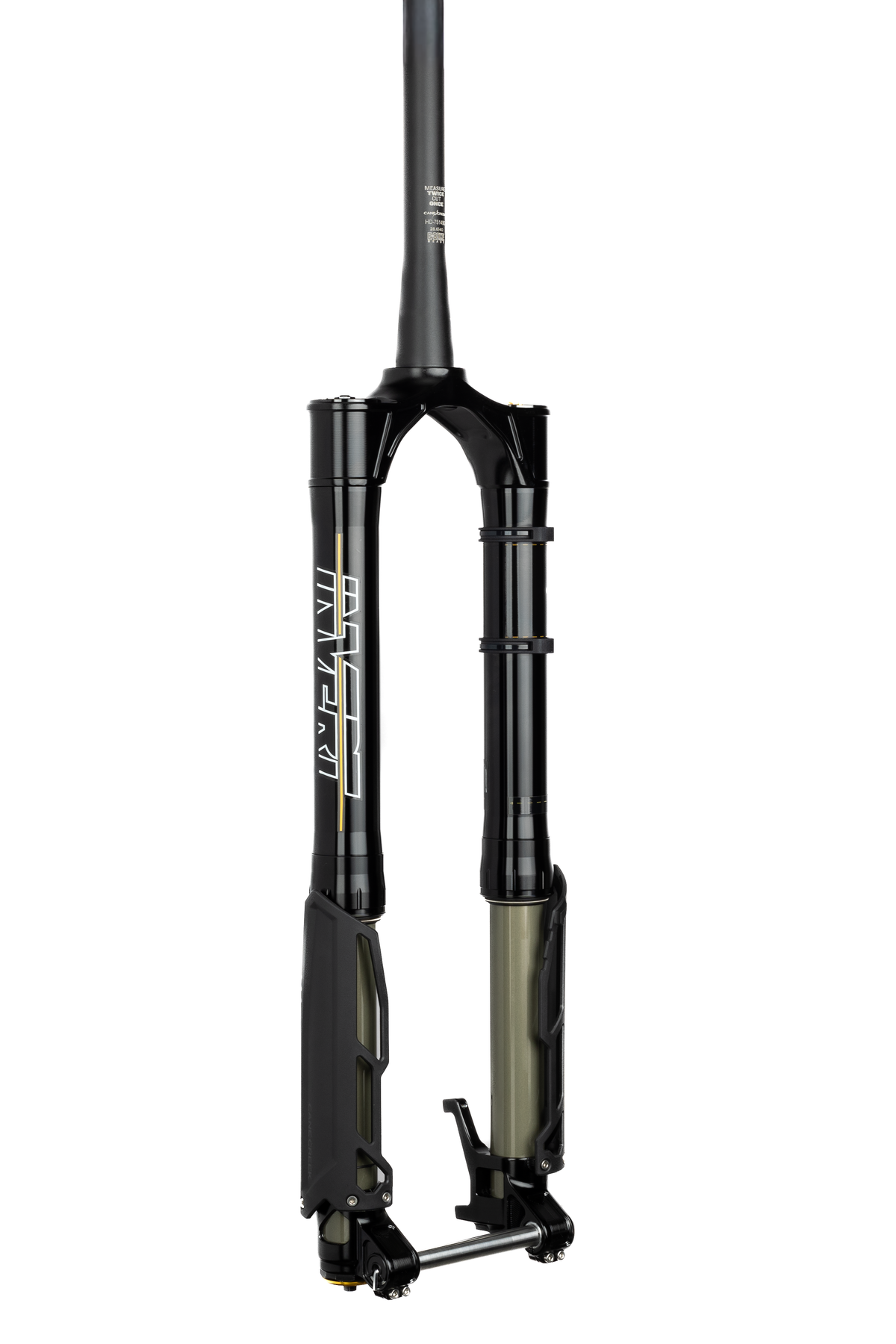

Invert Enduro unlocks dirt bike confidence on your mountain bike. It brings the traction and smoothness of moto-style inverted forks to more riders with less cost and hassle. It’s the kind of game-changing component that will have you unlocking the trails and features you’ve dreamed of checking off.
-
160mm - 180mm travel
-
Overbuilt, moto-inspired chassis built to handle the weight, power, and speed of modern e-MTB.
-
Dual axle compatibility: 15mm or 20mm
-
Thrives in steep, fast, rough, and high-speed terrain
-
For long travel trail, enduro, bike park, and electric mountain bikes
Note: Invert Enduro comes with a 15mm axle. 20mm axle available soon.
Need help? Submit a ticket or call (828) 641-9560 and our support team will help you find a solution.
REVIEWS
HEAR WHAT OTHERS HAVE TO SAY
Why Inverted
The magic of Inverted forks is described in two words – Smoothness and Traction.
By placing the larger, stiffer tubes up top and the bushings closer to the axle, inverted forks better resist the fore/aft flex that causes binding friction and chatter. The inverted design also offers significantly more front wheel traction by allowing the tire to swim - not skip - through rough, loose, and off-camber sections.
Together, this produces the magically smooth, calm, and planted front end that inverted forks are known for. Moto figured it out first, and now mountain bikes have unlocked it.

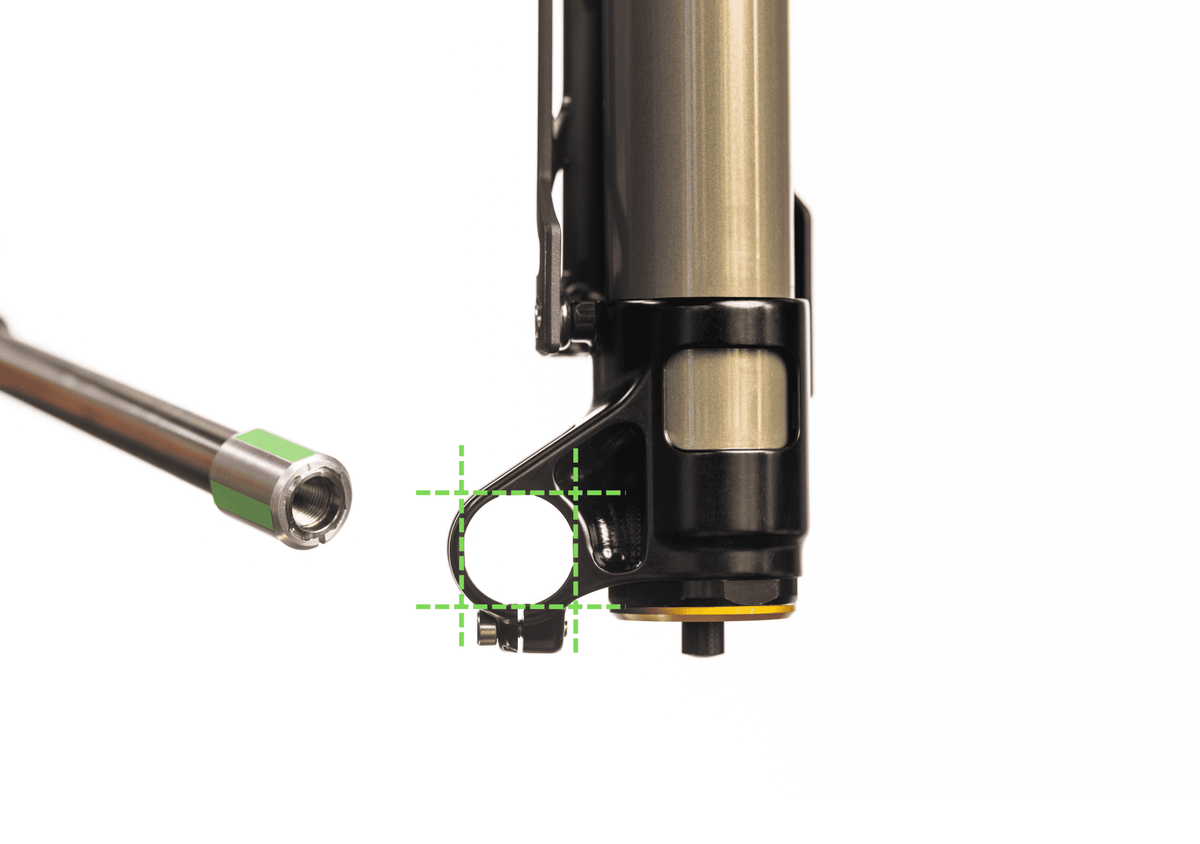

SquareLoc Axle System

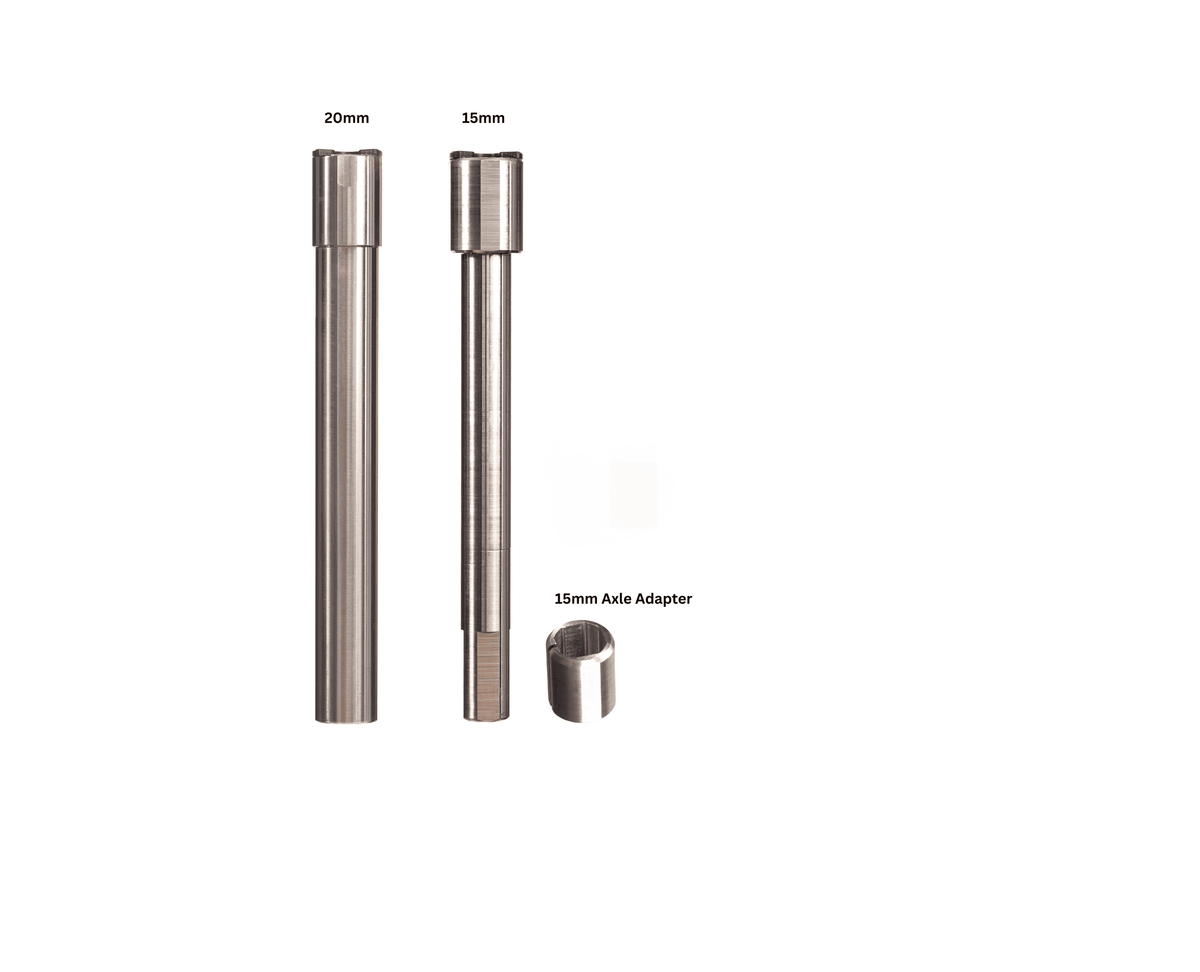

Two Axle Options

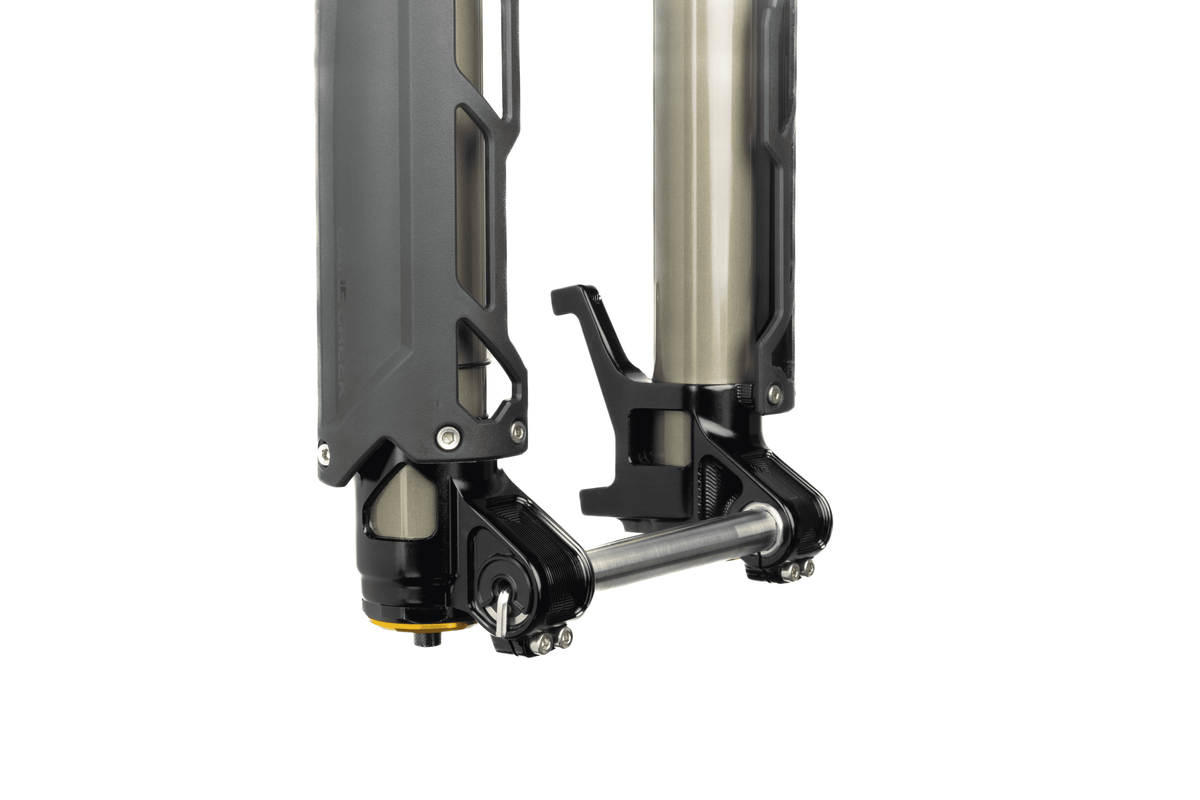

With inverted forks, the majority of the feel and performance comes from the axle. Invert Enduro’s SquareLoc axle keys to the dropouts, then locks in place with 4 pinch bolts to secure the entire fork together. This keeps the legs from twisting around the axle and adds all the needed torsional stiffness to the fork. With SqaureLoc, you can tune the exact flex characteristic of the fork to suit your preferences.
15mm Axle
- 17-4 Pre-Hardened Stainless Steel
- Included with Invert Enduro
- Suitable for most riders
- 17% more torsional stiffness than other inverted single crown forks
- Compatible with your current front wheel – the plug & play solution
- Gives max traction by allowing front tire to stay planted instead of skipping/deflecting
20mm Axle
- 17-4 Pre-Hardened Stainless Steel
- Available Separately
- Offers maximum torsional stiffness, steering precision, and most direct front end feel
- 42% more torsional stiffness than other inverted single crown forks
- Optimal performance for heavier riders or those on full power e-bikes

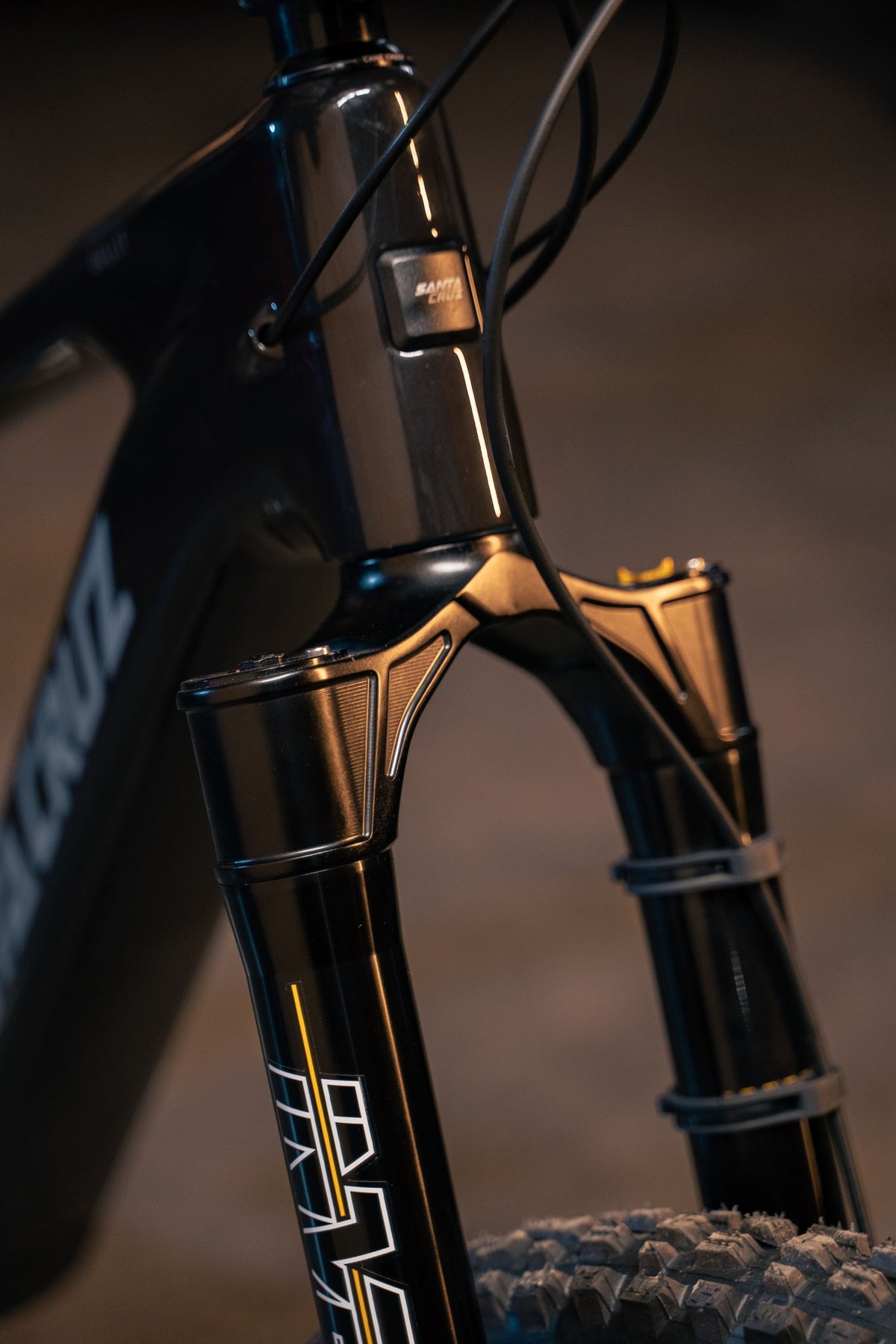

E-Bike Ready

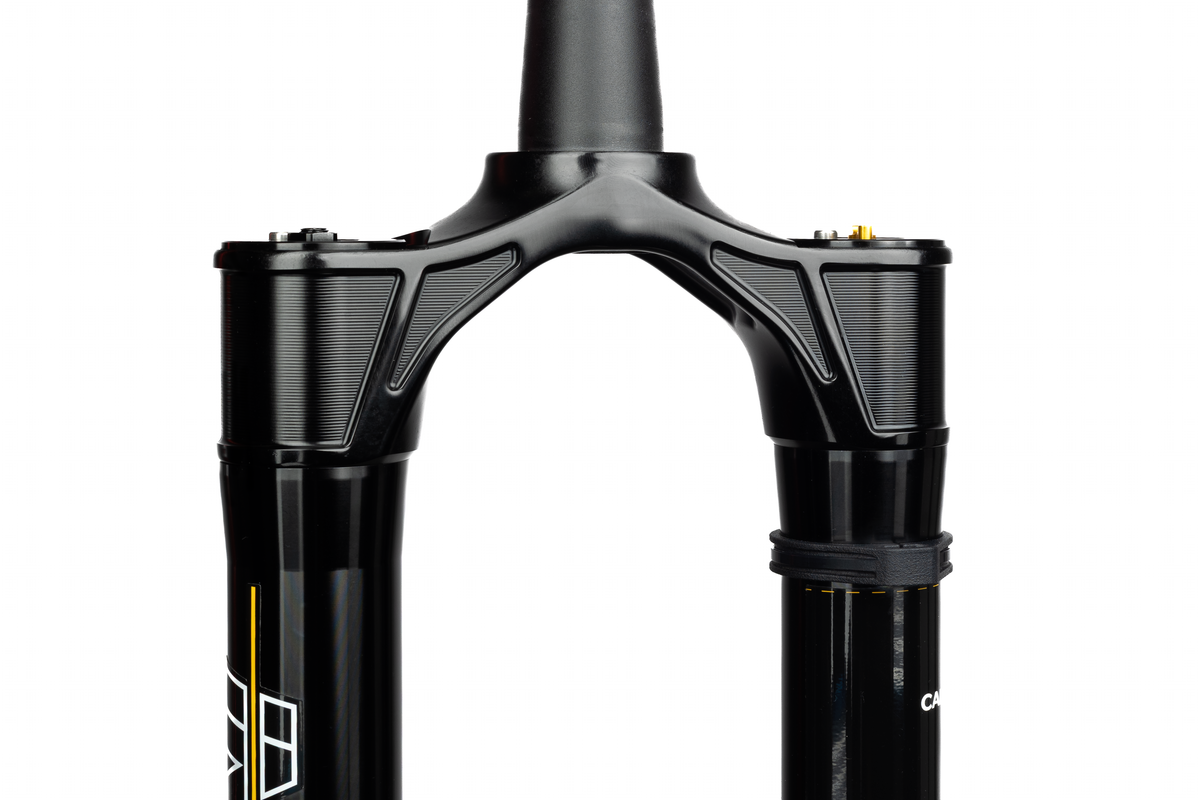

While it suits analog bikes just fine, we made sure that the Invert Enduro chassis was built to handle the weight, power, and speed of modern e-MTBs. 45mm diameter upper tubes paired with 38mm lower tubes and our SquareLoc axle system make the Invert one of the most robust single crown enduro forks available. We wanted a fork that would allow us to fully utilize our e-bikes' abilities to do more laps on the most challenging downhills. We hope you brought your range extender...

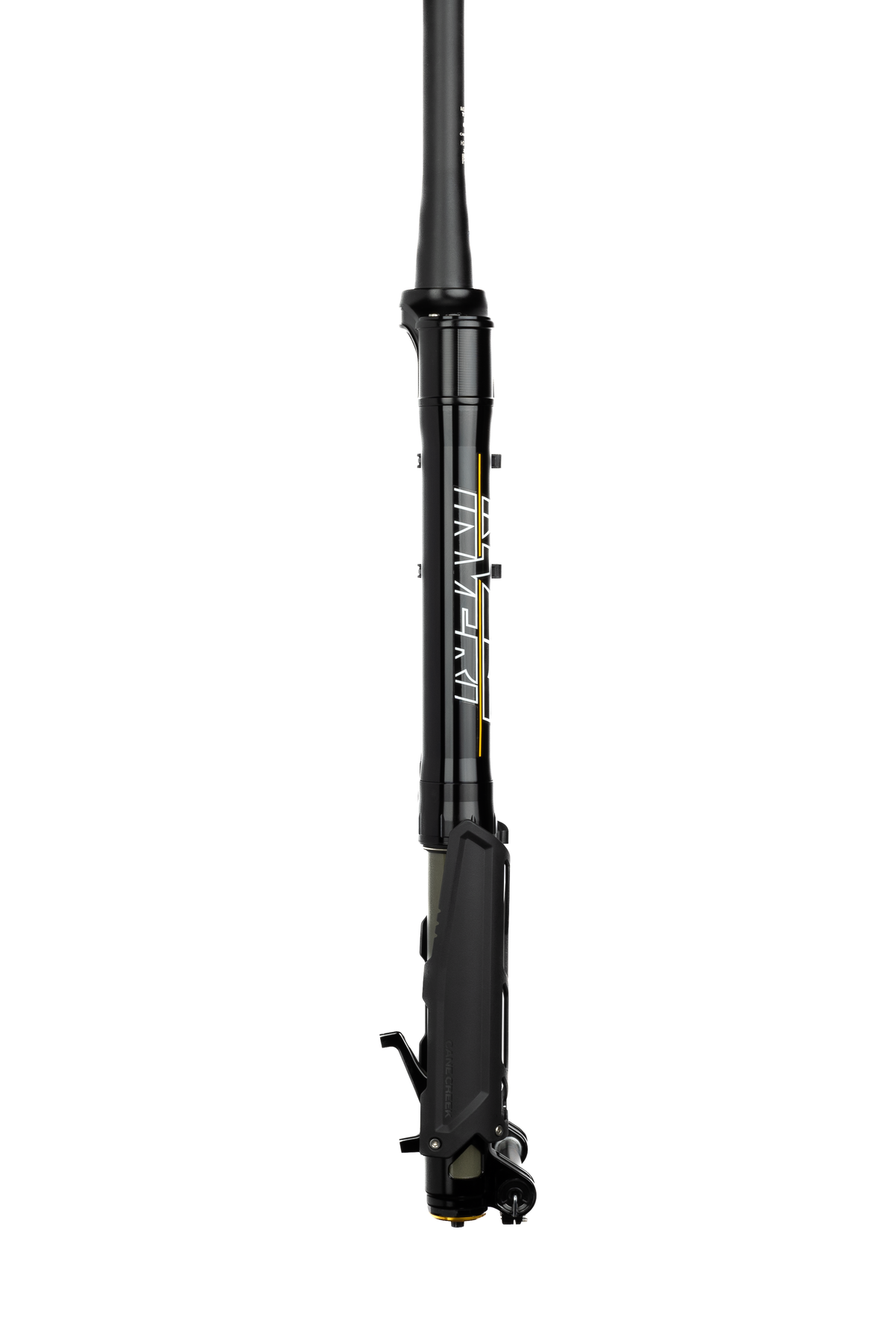

SideSwipe Guards
Protection Where It’s Needed
Dirt bikes and motorcycles use fork guards that face forwards to protect the stanchion tubes from debris being kicked up at high speed by the riders ahead. Mountain bikes simply don’t have this problem and therefore don’t need their fork guards placed in the same orientation. Invert Enduro’s SideSwipe guards are shifted to the side of the fork, where mtb forks actually take abuse. This results in a better-looking layout that’s more specific to the mountain bike application.
Additional Information
Product Specifications
160mm, 170mm, or180mm (Requires different air spring for travel change)
2795g (180mm travel - complete with guards, hardware, and full steerer)
Compatible with 15mm or 20mm front axle using included adapter. 20mm axle available separately.
17-4 pre-hardened stainless steel
SideSwipe Guards included
HSC, LSC, LSR, Air Pressure & Volume
Air spring only. Cartridge style with self-equalizing charge port design for lowest initial force.
45mm
38mm
SquareLoc axle keys to dropouts and secured with pinch bolts for high level of torsional stiffness.
In top caps for maintaining plushness
Easy setup using suggested sag marks on guard. ForkTuner app for dialed air spring and damper tuning.
1 1/8" - 1 1/2". Extra wall thickness increases strength and stiffness.
586.5mm (170mm travel)
44mm
200mm native (220mm with adapter)
15mm OR 20mm x 110 BOOST
2nd Gen Helm MKII, monotube, bladder
29" only/29 x 2.6 on 30mm int. width rim
Not available at this time.
Technical Documents
FAQ
Do you offer a coil version?
No, Invert Enduro comes with an air spring only. It’s a very adjustable air spring that can be setup to feel super plush and linear if you prefer that feeling. In its most linear setting, it is quite easy to use full travel, even for lighter weight riders.
What type of damper does Invert Enduro use?
Invert Enduro uses a closed-cartridge, monotube damper with a bladder. It’s the second generation Cane Creek fork damper and the same one used in Helm MKII. This damper has an extremely reliable design, is easy to adjust, and provides a meaningful range of adjustment to suit the vast majority of riders and bike types.
What are the damper adjustments?

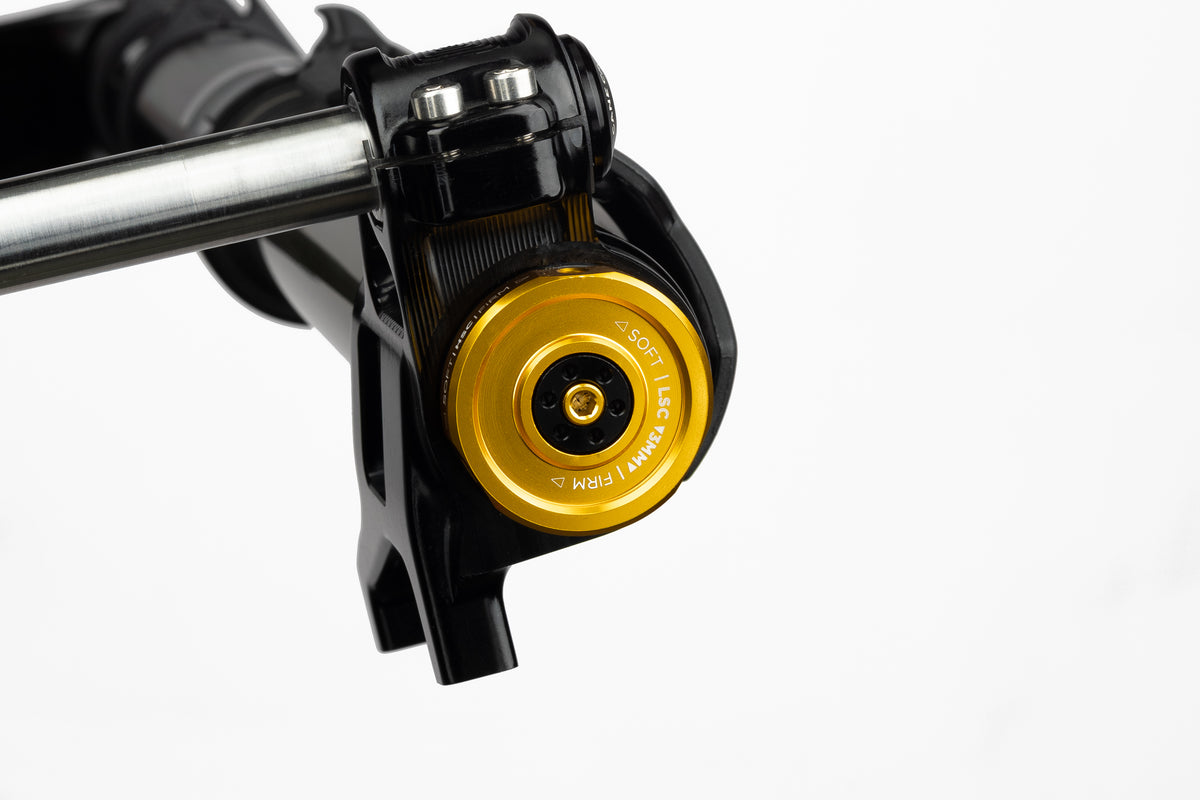

Independent high and low speed compression, with a single low speed rebound adjuster. The high-speed rebound is pre-set and managed internally by a shim stack on the rebound piston. Each damper adjuster features 10 clicks and a wide, discernable range of adjustment.
How do I tune the progression of the fork?
Progression for Invert Enduro is adjusted using a fully onboard volume adjustment system. It consists of a shaft and piston that live directly underneath the air valve. To change the progressivity of the fork, simply unthread the bottom cap on air leg using a 13mm socket and adjust the position of the volume adjustment piston by hand. See instruction manual for more important details.
Will Invert Enduro change my bike’s geometry or fit?
No. The Axle-to-Crown (fork height) of Invert Enduro is 586mm in the 170mm travel version. Simply add or subtract 10mm to determine ATC for the 160mm and 180mm forks. This ATC is nearly identical to other mainstream options in this travel range, so Invert Enduro will not have any discernable effect on the fit or handling of your bike.
Can I service the fork at home?
Routine splash oil changes (typical ‘lowers service’) can easily be done in a matter of minutes at home. This procedure does not require special tools beyond a 13mm and 18mm socket to remove the fork legs from the upper.
How do you change travel on Invert Enduro?
Changing travel requires a different length air spring assembly. These will be available for purchase through Cane Creek dealers and service centers if you need to change the travel of the fork. This procedure requires disassembly.
Is Invert Enduro designed for e-bikes?
Yes! Invert Enduro is designed to be robust enough for heavy e-bike use. Much of the R&D and development of the fork was completed on full power e-bikes in bike park settings. We’re confident you will LOVE Invert Enduro on your e-bike.
How do I set up and tune Invert Enduro?
We’ve got an app for that! ForkTuner is a free web app that walks riders through the full setup and tuning procedure – the same one used by OEM and pro riders – and helps riders identify a tune that works for them regardless of their riding style. It’s an interactive suspension tuning coach that riders can utilize trailside and then use to log their settings. ForkTuner comes as a sequel to our existing ShockTuner app and will cover setup for both Helm MKII and Invert Enduro.
Are there any special types of hubs required for the fork to perform optimally?
No. Any modern, 110mm boost thru-axle hub will fit and perform optimally with the fork. There are no additional fit requirements or hub design criteria that we specify for use with Invert Enduro. Thanks to the SquareLoc dual axle compatibility, Invert Enduro is compatible with both 15x110 boost and 20x110 boost front hubs.
Do I need a different headset to use the fork?
Most likely, no. Invert Enduro uses a 1 1/8” - 1.5” steerer tube which is the common industry standard for modern mountain bike suspension forks. It should work with 99% of the headsets in modern mountain bikes.
Is Invert Enduro compatible with 27.5 wheels?
Invert Enduro is strictly designed to be used with 29” wheels. While you could mount a 27.5” wheel in the fork with no apparent issues, it will lower the front end of the bike considerably and would likely negatively impact the handling. For example, this would steepen the headtube angle and lower the bottom bracket, making the bike less stable at speed and more likely to have issues with pedal strikes.
What’s the max tire clearance?
There is room to safely clear a 29x2.6” tire on a 30mm internal width rim.
Do I have to use the SideSwipe guards?
Yes. Beyond the primary reason of protecting the stanchions from damage, the guards are required to safely manage the brake hose as the fork travels so that it does not get caught in the spokes.
How much sag should I run on Invert Enduro?
Invert Enduro is recommended to be set up with 25% sag. Riders are welcome to use more or less than this, but 25% is our recommended starting point. There are sag marks on the drive side guard that indicate this position for each fork travel. (160, 170, 180)
The fork bottoms too easily even after setting sag correctly. What should I do?
It’s time to reduce the volume of the fork (aka. make more progressive) Remove the air from the air spring, unthread the bottom cap on air leg using a 13mm socket, and adjust the position of the volume adjustment piston by hand. See instruction manual for more important details.
Do I need to manually equalize the pos/neg air spring, similar to how it’s done on Helm MKII?
No. Invert Enduro uses a charge port style air spring that automatically equalizes the positive and negative chambers just by compressing the fork several times.

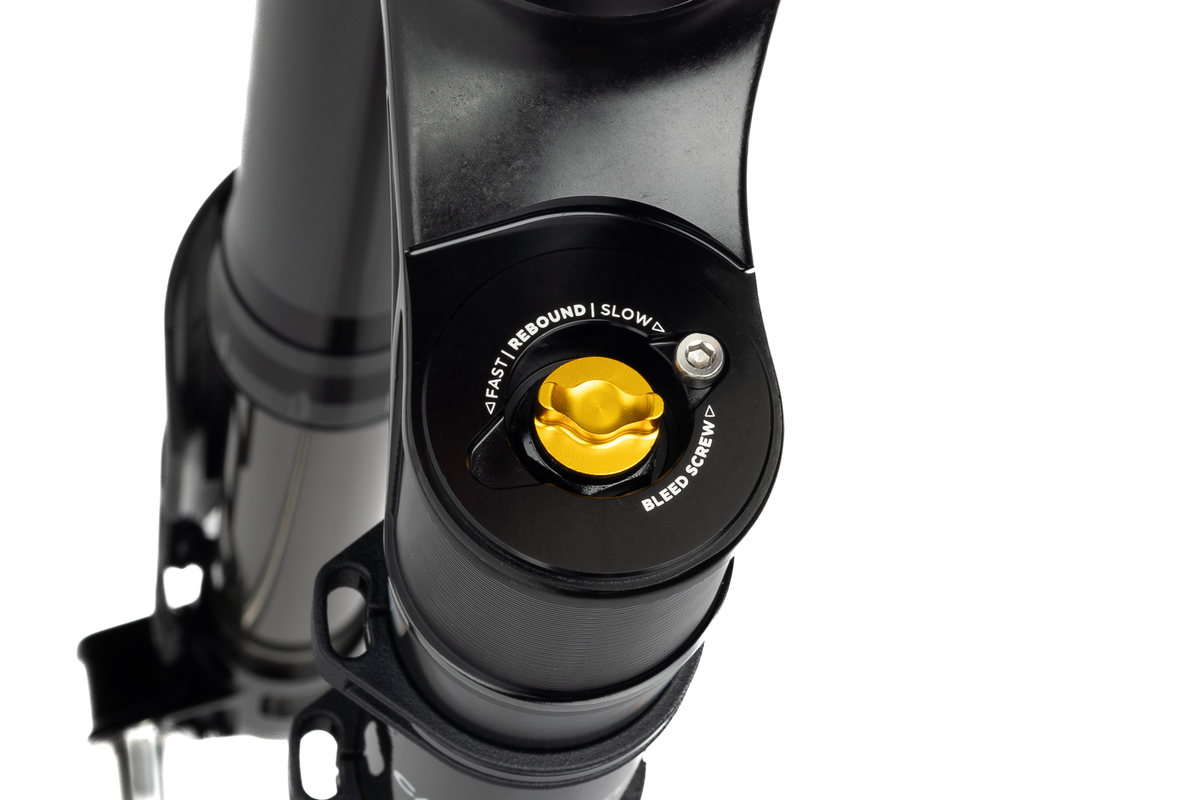

What are the bleed screws on the top caps for, and how often should I use them?
These ‘bleeder’ screws are to designed to allow the rider to remove any excess air pressure that gets trapped in the fork uppers during use. This can happen during hard compressions, large temperature swings, or large changes in elevation such as when traveling to new regions. By removing any trapped air, you will maintain the smoothest possible operation of the fork and maintain your ability to use full travel. For best performance, remove and reinstall the bleed screws often. Once every several weeks is sufficient for most riders.
What brake adapters do I need to install Invert Enduro?
Invert Enduro is a direct, post mount for 200mm. If you use 200mm or 203mm front rotor, you do not need any adapters and the brake caliper will bolt directly to the fork. You can also use a 220mm rotor with a +20mm post mount adapter.
