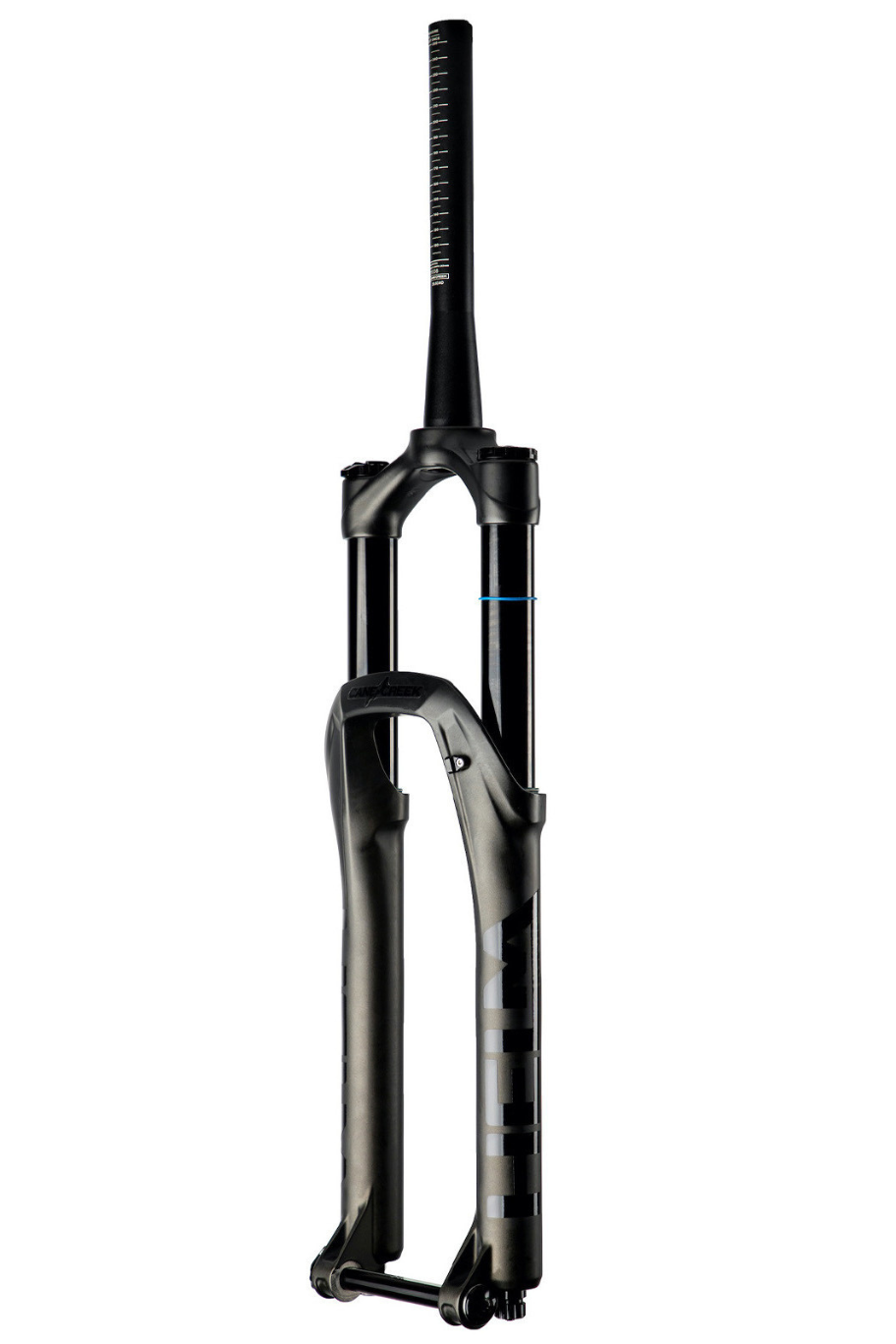

Helm MKII 29"
MTB Fork
Helm MKII 29"
MTB Fork
Helm MKII is our highly versatile mountain bike fork, well suited for downcountry, trail, and enduro bikes. We designed it to be super plush while still feeling supportive, and it can adapt to just about any way in which you want to ride it.
It’s the missing puzzle piece when your bike feels outgunned and harsh on rough trails – giving you the confidence to charge into chunky sections with less hesitation.
With zero additional parts, Helm can be setup with anywhere from 120mm to 160mm of travel. It also has a large range of air spring and damper adjustments, where each position represents a meaningful change – making it easier to dial in a setup you love.
- Smooth Sailing: Updates to the MKII damper and seals were designed for maximum plushness
- Dialed Support: Independent compression damping allows you to add support for big hits while still having sensitive suspension to smooth out trail chatter.
- Confident Handling: Helm’s chassis is burly enough for aggressive riding, with the torsional stiffness to make your front wheel go where you point it.
- Adjustments You Can Feel: Independent and wide ranging high and low speed compression adjustments make meaningful changes with each click.
- Hand Built: and individually dyno-tested right here in NC.
- Unique Style: With 8 colored decal kits, and 4 complete Chroma Studio color options, there’s full opportunity to make your bike stand out.
- Travel Adjustable: Easy, at-home travel change (120mm – 160mm) with zero additional parts!
- Two Spring Options: air spring = maximum tunability coil spring = best sensitivity and ground-hugging feel
- Unique air volume adjustment system that allows you to dial in your perfect amount of middle and end-stroke support.
29 inch Helm forks come in a gloss black finish with matte black stickers and 27.5 Helm forks will come in a matte black finish with gloss black stickers.
All 29″ fork returns are subject to a 20% restocking fee.
All 27.5″ forks are final sale.
Suspension is built to order, ships in 10-15 days.
30-Day returns
Free US shipping on orders $99+
Is the product you want out of stock? Submit a ticket or call (828) 641-9560 and our support team will help you find a solution.
- MMMichael M.ReviewingHelm MKII 29"I recommend this productRated 5 out of 5 stars3 years agoHelm MKII Air 29 - 160mm - 44mm Offset - BAG0685
The Helm is the plushest fork I have ridden. I was amazed at how adjustable this fork is and how easily I can adjust the travel. The negative chamber leaves no questions on equalizing air. And the ride? AMAZING! So much fun and so plush in every environment, but especially when things get rowdy! Not satisfied with your current setup, don't hesitate giving the Helm a go. You won't be disappointed!
- MTMike the bike guy, Pedal S.Verified ReviewerReviewingHelm MKII 29"I recommend this productRated 5 out of 5 stars1 year agoHelm MKll Air, 29er
As many have said, the set up for the fork is very easy. At 198lbs, l went with 68psi in the upper and 63psi in the lower ** guessing that's what l set it at(no way to test that, yet), wide open high speed damp and 5 notch off from wide open low speed damp and the rebound is in the middle of the settings. Buttery smooth fork and plows through rocky gnar better than a lot of forks l have had, better than some of the big hit 200mm squish forks. Very impressed. It's a keeper!!!
- MMMichael M.ReviewingHelm MKII 29"I recommend this productRated 5 out of 5 stars3 years agoHelm MKII Air 29 - 160mm - 44mm Offset - BAG0685
The Helm is the plushest fork I have ridden. I was amazed at how adjustable this fork is and how easily I can adjust the travel. The negative chamber leaves no questions on equalizing air. And the ride? AMAZING! So much fun and so plush in every environment, but especially when things get rowdy! Not satisfied with your current setup, don't hesitate giving the Helm a go. You won't be disappointed!
- MTMike the bike guy, Pedal S.Verified ReviewerReviewingHelm MKII 29"I recommend this productRated 5 out of 5 stars1 year agoHelm MKll Air, 29er
As many have said, the set up for the fork is very easy. At 198lbs, l went with 68psi in the upper and 63psi in the lower ** guessing that's what l set it at(no way to test that, yet), wide open high speed damp and 5 notch off from wide open low speed damp and the rebound is in the middle of the settings. Buttery smooth fork and plows through rocky gnar better than a lot of forks l have had, better than some of the big hit 200mm squish forks. Very impressed. It's a keeper!!!
REVIEWS
HEAR WHAT OTHERS HAVE TO SAY
- MMMichael M.ReviewingHelm MKII 29"I recommend this productRated 5 out of 5 stars3 years agoHelm MKII Air 29 - 160mm - 44mm Offset - BAG0685
The Helm is the plushest fork I have ridden. I was amazed at how adjustable this fork is and how easily I can adjust the travel. The negative chamber leaves no questions on equalizing air. And the ride? AMAZING! So much fun and so plush in every environment, but especially when things get rowdy! Not satisfied with your current setup, don't hesitate giving the Helm a go. You won't be disappointed!
- MTMike the bike guy, Pedal S.Verified ReviewerReviewingHelm MKII 29"I recommend this productRated 5 out of 5 stars1 year agoHelm MKll Air, 29er
As many have said, the set up for the fork is very easy. At 198lbs, l went with 68psi in the upper and 63psi in the lower ** guessing that's what l set it at(no way to test that, yet), wide open high speed damp and 5 notch off from wide open low speed damp and the rebound is in the middle of the settings. Buttery smooth fork and plows through rocky gnar better than a lot of forks l have had, better than some of the big hit 200mm squish forks. Very impressed. It's a keeper!!!
"Mixing incredible levels of control, impressive levels of small-bump sensitivity and bucket loads of adjustability leaves the door wide open when searching for that ultimate set up."
– Jim Bland, World Cup mechanic

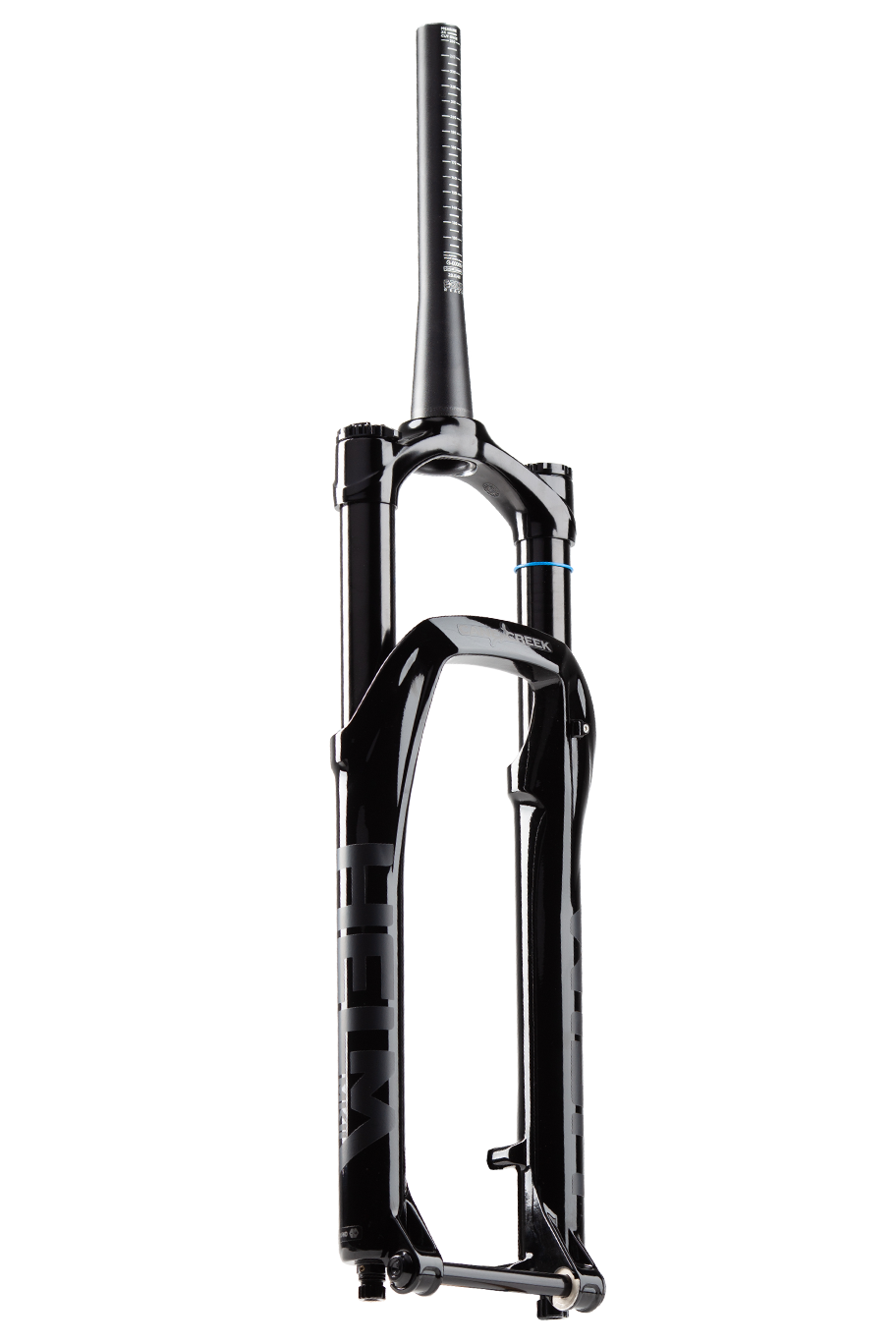

Helm MKII Air
Product Specifications
2080 grams
High Speed Compression, Low Speed Compression, Low Speed Rebound
Double-Air spring system. High volume positive and negative air springs
35mm
180mm. *If you are using a Hope Tech brake on a Helm fork, you will need to use a 200mm rotor with appropriate adapter.
Optimized for 130-160mm of travel
Internal, 10mm Increments (160mm down to 130mm)
2 Travel spacers included
"D-Loc" 15mm Bolt-on thru axle / 15mm x 110 BOOST spacing / 44mm
64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+)
Helm MKII Coil
Product Specifications
2340 grams
High Speed Compression, Low Speed Compression, Low Speed Rebound
High speed compression (10 positions)
Low speed compression (17 positions)
Low speed rebound (10 positions)
Indexed travel adjust system
Spring pre-load adjust
35mm
180mm. *If you are using a Hope Tech brake on a Helm fork, you will need to use a 200mm rotor with appropriate adapter.
Optimized for 130-160mm of travel
Internal, 10mm Increments (160mm down to 130mm)
(No additional parts required)
"D-Loc" 15mm Bolt-on thru axle / 15mm x 110 BOOST spacing / 44mm
64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+)
35lb spring – AAG0421 RED – (90-120lbs rider)
45lb spring – AAG0422 BLACK – (120-160lbs rider)
55lb spring – AAG0424 GREEN – (160-200lbs rider)
*55lb spring comes pre-installed from the factory
65lb spring – AAG0426 BLUE – (200-240lbs rider)
With changes in internal travel amount, rider positioning on the bicycle, bicycle head angle, and rider ability/style, spring rates will vary. For assistance please contact Cane Creek or your nearest Certified Service Center
55 lb Lightweight Coil Spring included from factory
35-45-55-65 lbs/in springs available on our Parts and Accessories Page
