eeBrakes - Mirror Image
eeBrakes - Mirror Image
Our newest limited edition brake - Mirror Image - is a mean black and crimson combination, with front and rear brakes that are color-flipped versions of each other. Known for their extraordinary stopping power, incredible adjustability, and striking design, eeBrakes are also half the weight of their competitors - truly setting them apart in the world of performance.
eeBrakes are assembled by hand in our facility just outside of Asheville, North Carolina.

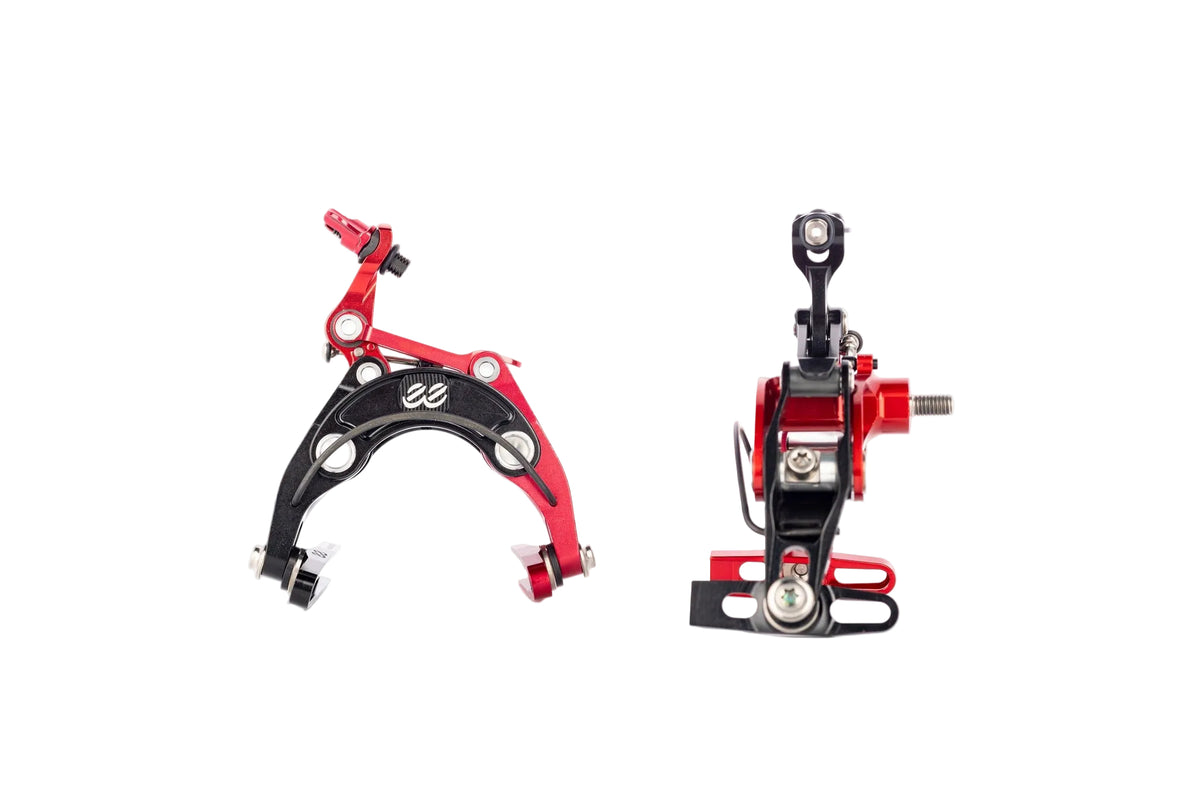

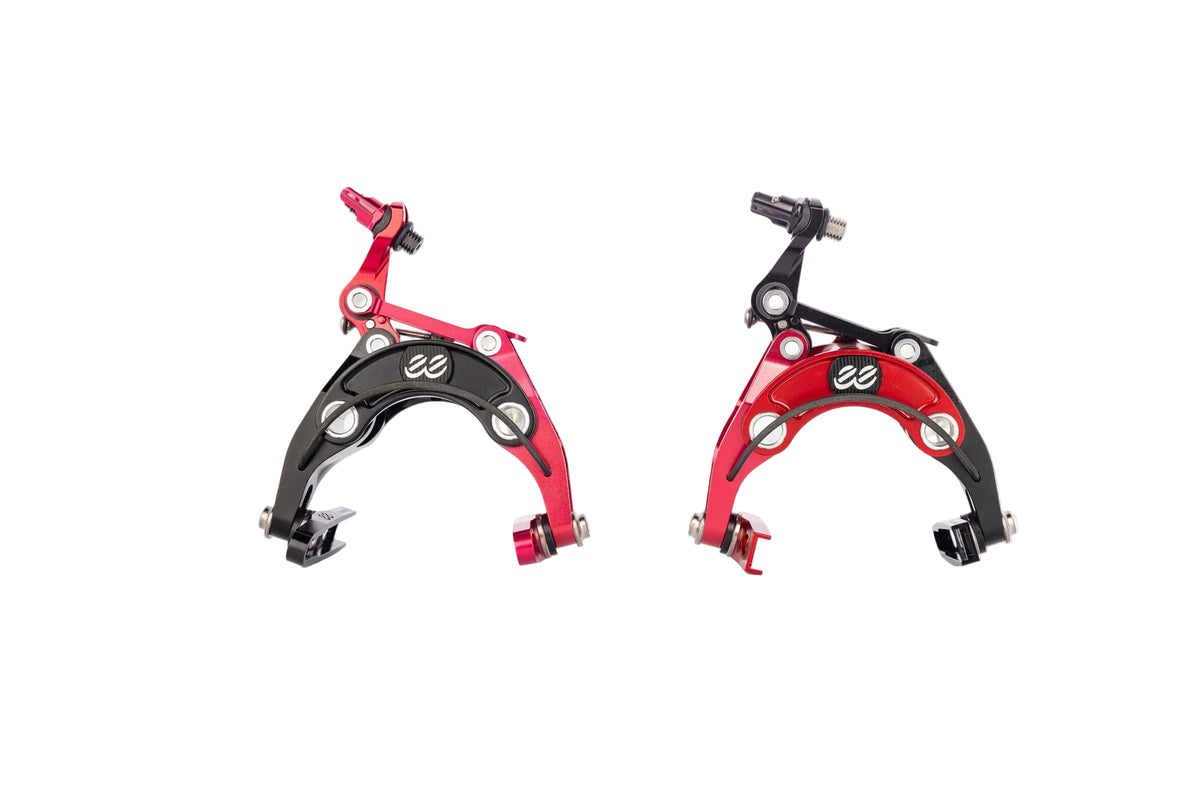

Mirror Image brakes are sold as a set of 2 (front & rear) in both standard and Brompton-specific configurations. There will only be 150 sets made.
Mirror Image
POWERFULLY UNIQUE
Cane Creek has released two limited edition eeBrakes per year since 2017, each in very small quantities. The brakes have become a favorite for custom builders and enthusiasts looking to add character, unrivaled craftsmanship, and stopping power to their bikes.
Aerodynamic
Cross Cable Path aligns the brake cable over the center of the brake. This alignment provides a graceful, clean line and moves cables into the “wind shadow” of the frame, providing an aerodynamic advantage over traditional brakes with their cables and lever arms off to one side of the caliper.
Perfect Cable Alignment

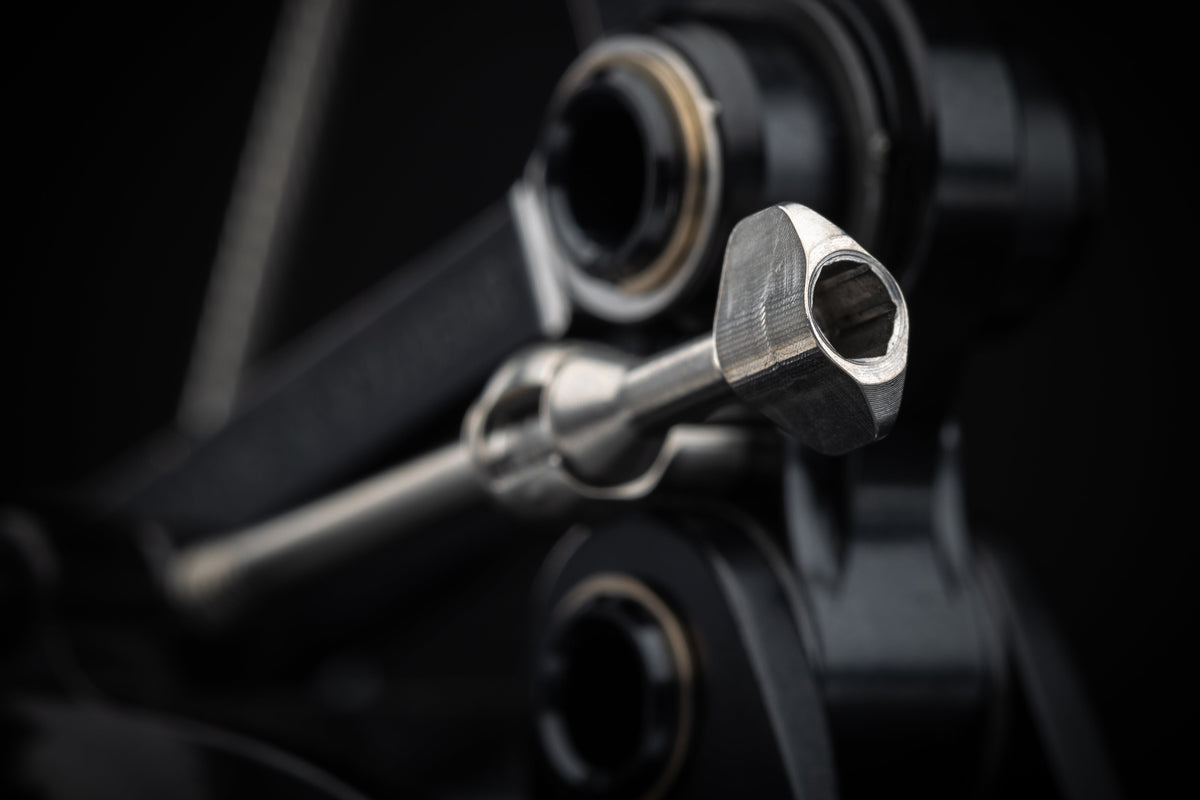

The titanium eeBrake cable adjuster pivots as the brake is applied, optimizing cable alignment during brake actuation. Also, the cable housing extends to lower tip of the cable adjustment screw eliminating added friction. That means, as the brake lever is squeezed, you get even and friction-free braking power.
EASY PRECISION
TITANIUM LINK
The tool-less adjustability provides super precision and pad motion consistency through the patented Link pad travel proportioning system. No annoying pad rub and constant need to re-center. No more re-adjusting the main fixing bolt after initial installation or using spring tensioning screws to align the brake pads.
REVIEWS
HEAR WHAT OTHERS HAVE TO SAY
Additional Information
Product Specifications
CNC High Grade Aluminum, Titanium, and Stainless Steel
19mm to 28mm
39mm to 49mm
Tool-free caliper centering adjustment, quick-release wheel removal, machined barrel adjuster w/retention o-ring, T-25 Torx pad holder & cable clamp
Optimized to work with Shimano, Campagnolo, and SRAM levers
Two stage anodized engraved aluminum ee badge
28mm
3 Years
50 Sets Standard, 100 Sets Brompton
BEE0500 - Standard Mount, Front & Rear Kit - Mirror Image
BEE0503 - Brompton Mount, Front & Rear Kit - Mirror Image
Not compatible with fenders or some rear rack
Technical Documents
