HELM Works Series 130

Select Bike to Check Fit

SUSPENSION OPTIMIZED.

Owners of short-travel bikes like the Yeti SB100, Giant Trance Advanced Pro, Santa Cruz Blur, and Trek Top Fuel rejoice! You now have a HELM fork option for your shorter travel bike.

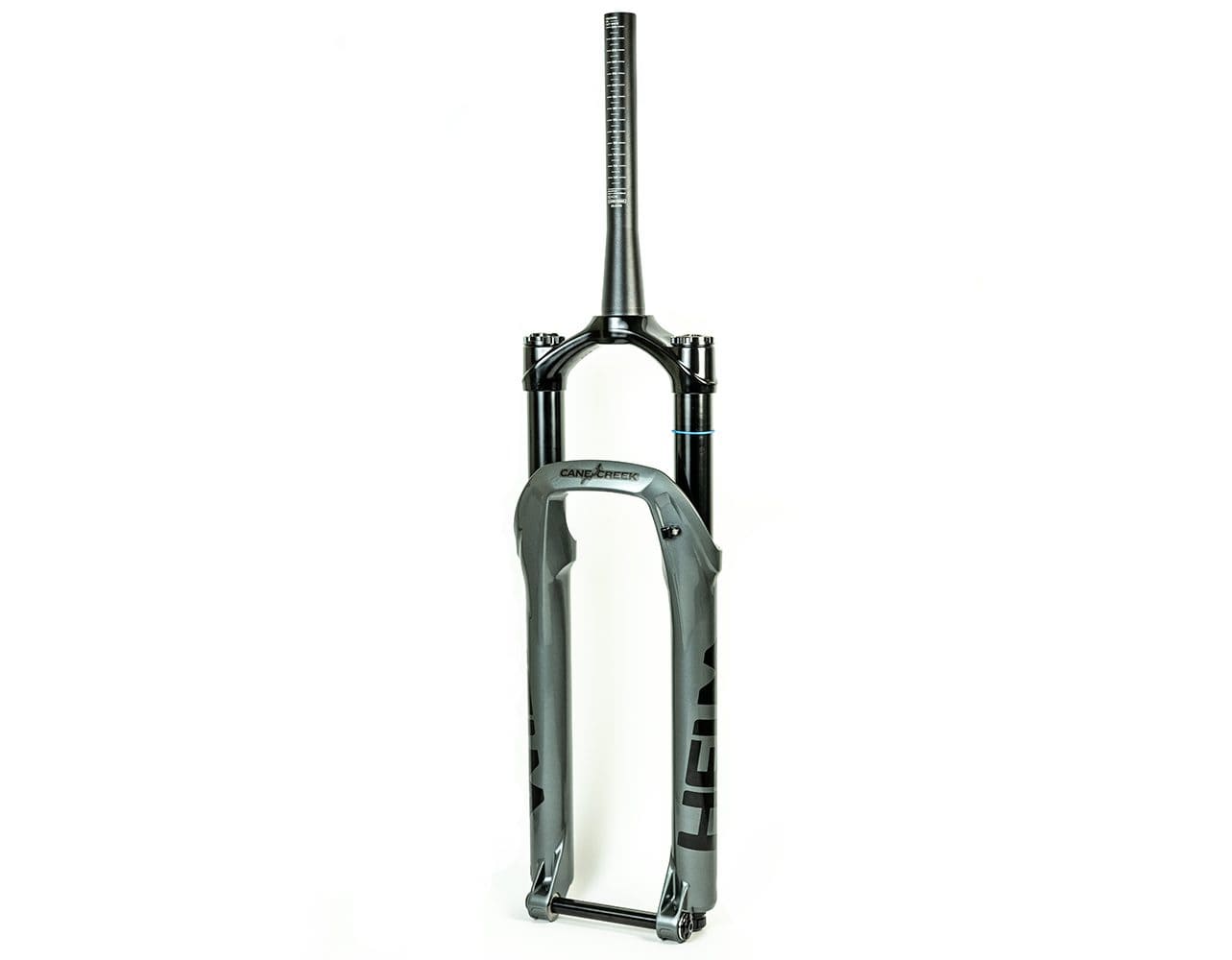

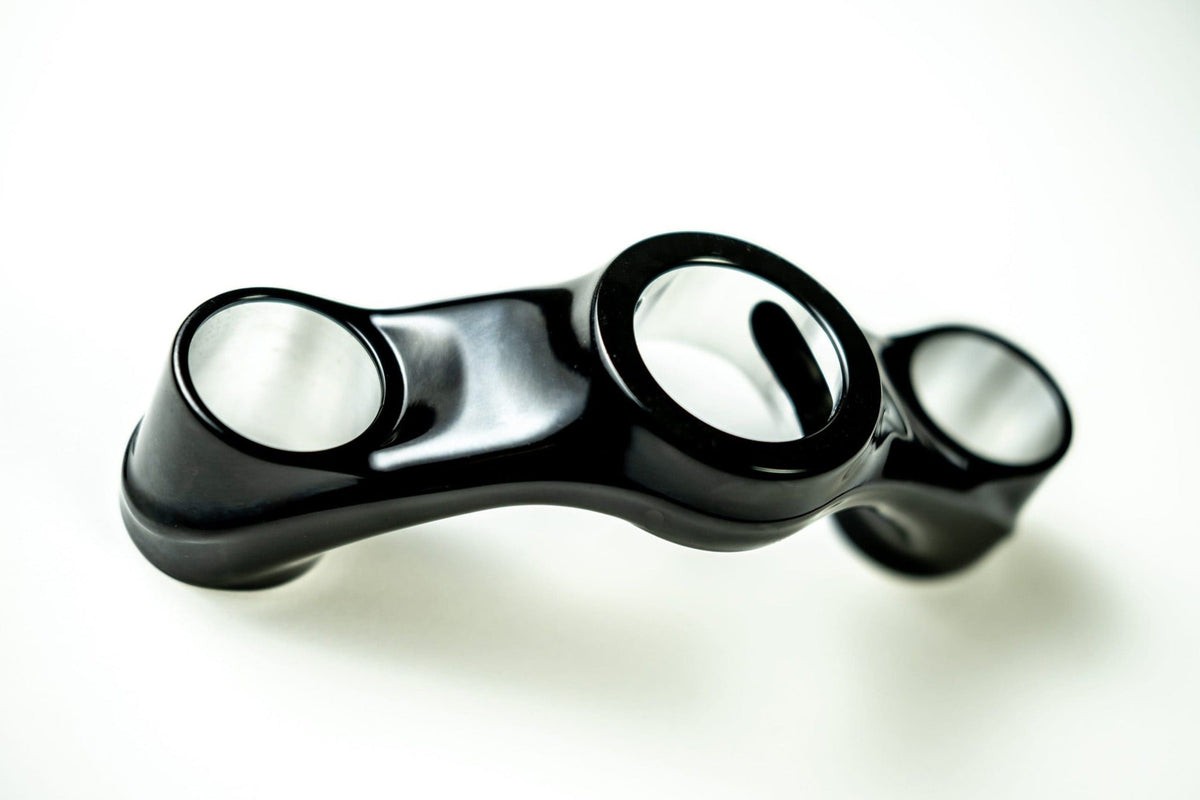

The HELM Work Series 130 is equipped with all-new, enhanced parts including a hollow anodized shorter offset crown, bolt-on D-Loc axle, high speed compression Climb Switch, and optimized internals including both a shorter compression rod and damper rod. However, the HELM Works Series 130 shares the same 35mm stanchions as the HELM 27.5 and HELM 29 forks, making it stiffer than its competition. The optimized features of HELM Works Series 130 bring 100 grams of weight savings over HELM Air 29.



Specs

WEIGHT
 1999 grams (100 grams lighter than Helm 29)
DAMPING

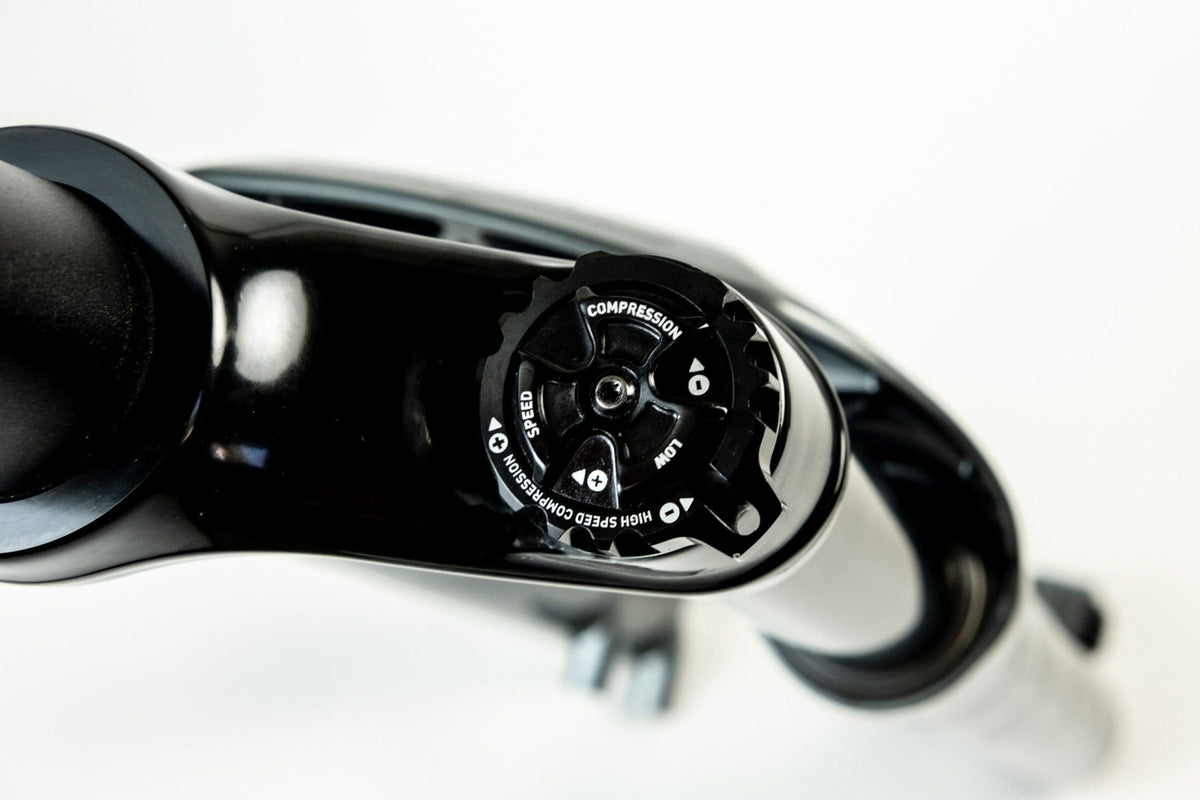

High Speed Compression, Low Speed Compression, Low Speed Rebound, High Speed Compression Climb Switch
ADJUSTMENTS

  • High speed compression
  • Low speed compression
  • Low speed rebound
  • Air volume adjust (8-position Internal indexed system)
  • Independent positive air spring
  • Independent negative air spring
  • Indexed travel adjust system, Max travel 130mm
SPRING
High volume positive and negative air springs
STANCHION DIAMETER
35mm
TRAVEL
Optimized for 130mm of travel
TRAVEL ADJUSTMENTS
Internal, 10mm Increments Travel Spacers Sold Separately
AXLE / SPACING / OFFSET
“D-Loc” 15mm thru axle, Bolt-On, 5mm HEX
MAX TIRE SIZE
64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+)
COLOR
Dark Gunmetal Grey
ROTOR SIZE
180mm Minimum


Features

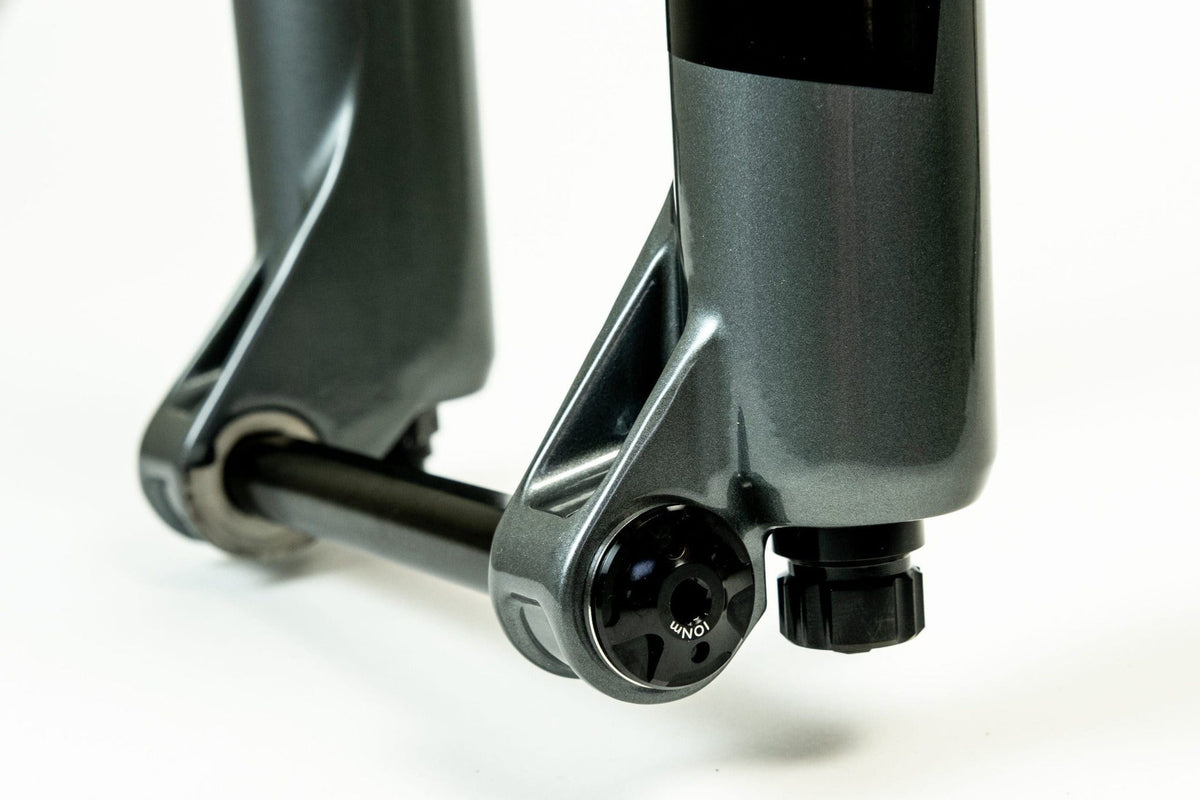

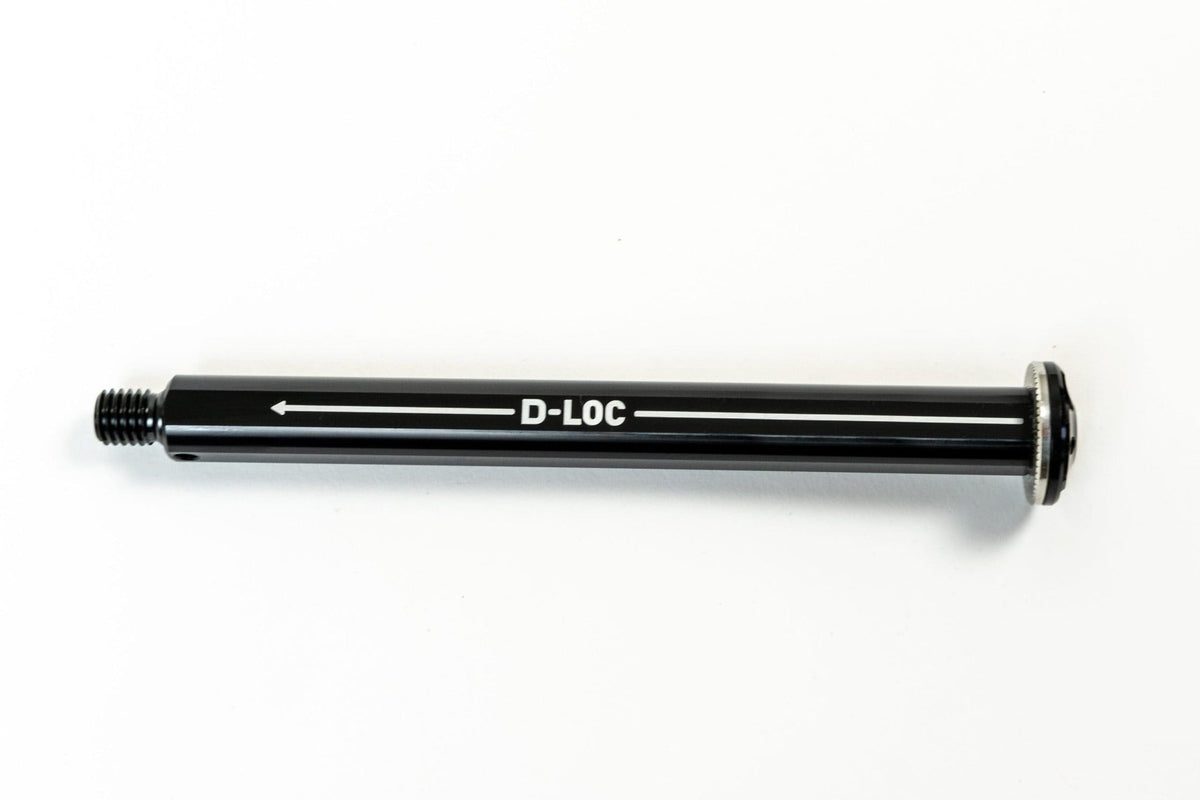

D-Loc Axle Assembly:
  • 5mm Bolt-on Axle
  • Fast and easy keyed entry axle and lock system
  • Eliminates unwanted rotational and torsional axle forces
Air Volume Adjustment:
  • Accessory-Free adjustment
  • 8 levels of volume reduction
Versatile Air Spring
  • Thoughtfully isolated positive and negative air chambers for ultimate tuning
  • Internal travel reduction possible with 10mm top-out spacers
